Edition
Model
Add-ons
Price
$1,749.00
$1,749.00
Save  $0.00
Quantity
For users who weigh more than 100kg (220 Ib), street wheels are not recommended.
7056W Peak Power. Up to 43 Mile Range/38mph Top Speed.

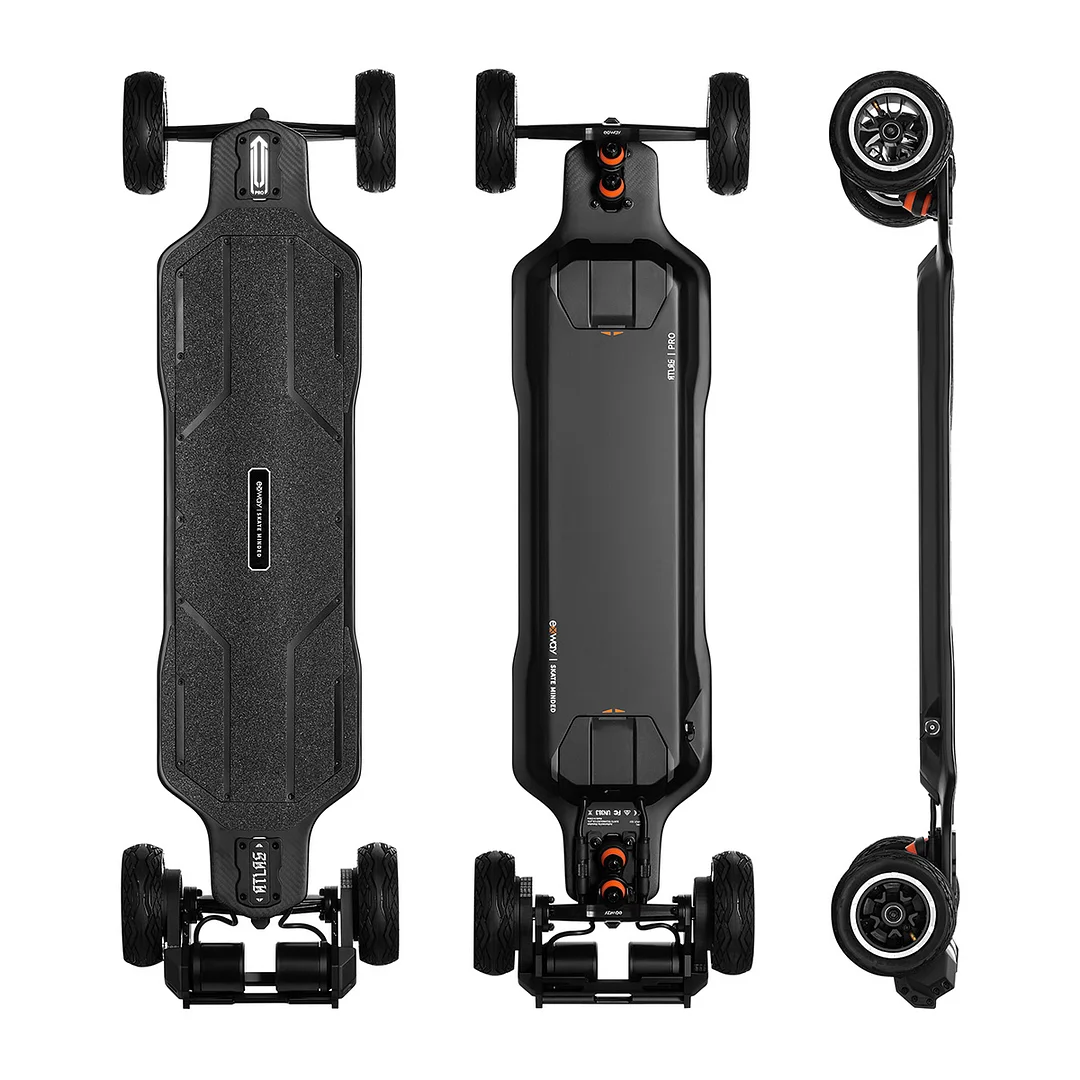

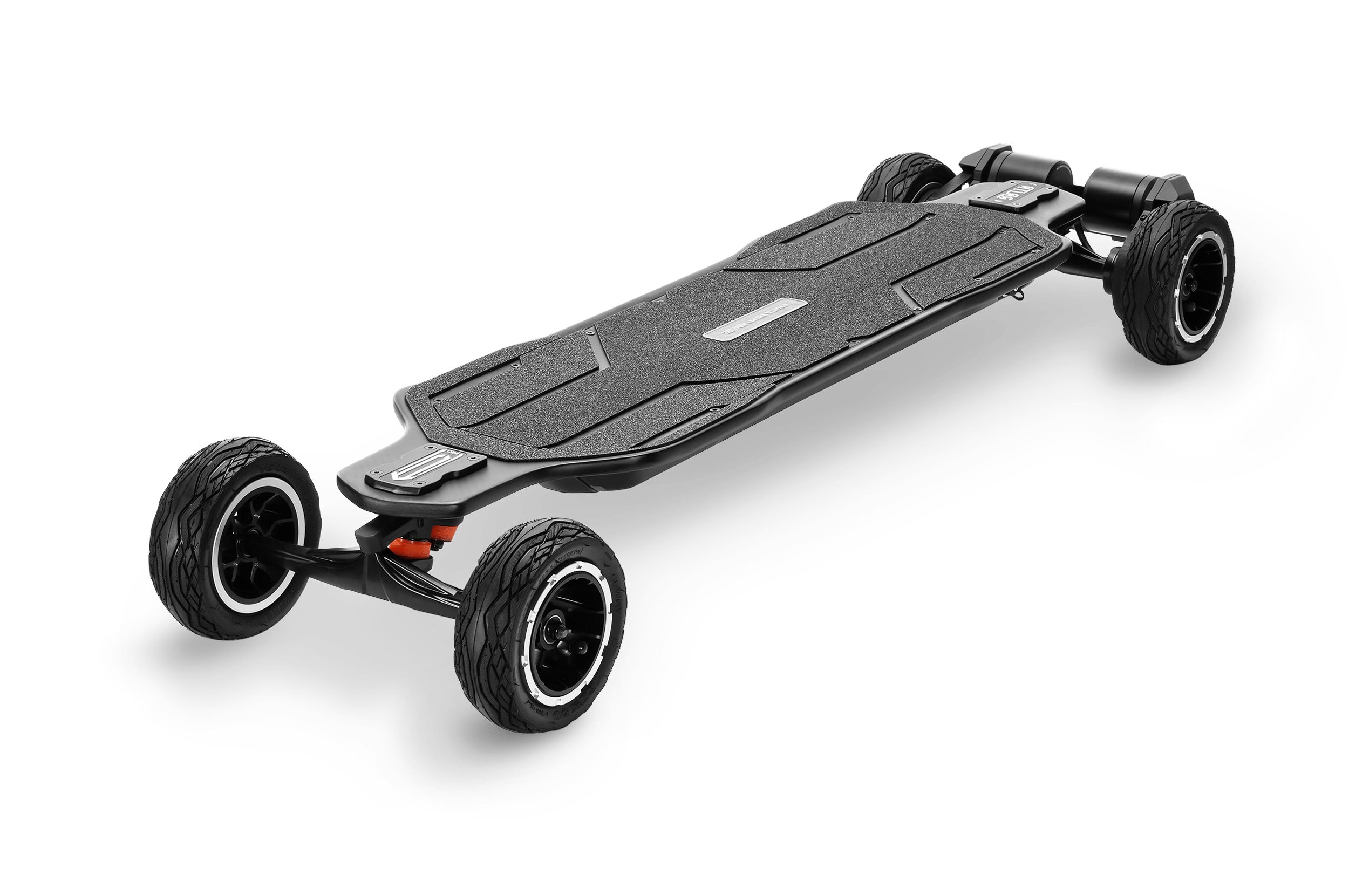

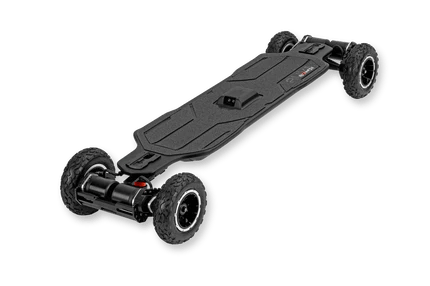

Carbon Unibody Deck
SKU: EB-A1P12WD

Aluminum Quick-Swap Wheel Hubs

Aluminum Quick-Swap Wheel Hubs

Replace your inner tubes without needing to disassemble the wheel hubs.

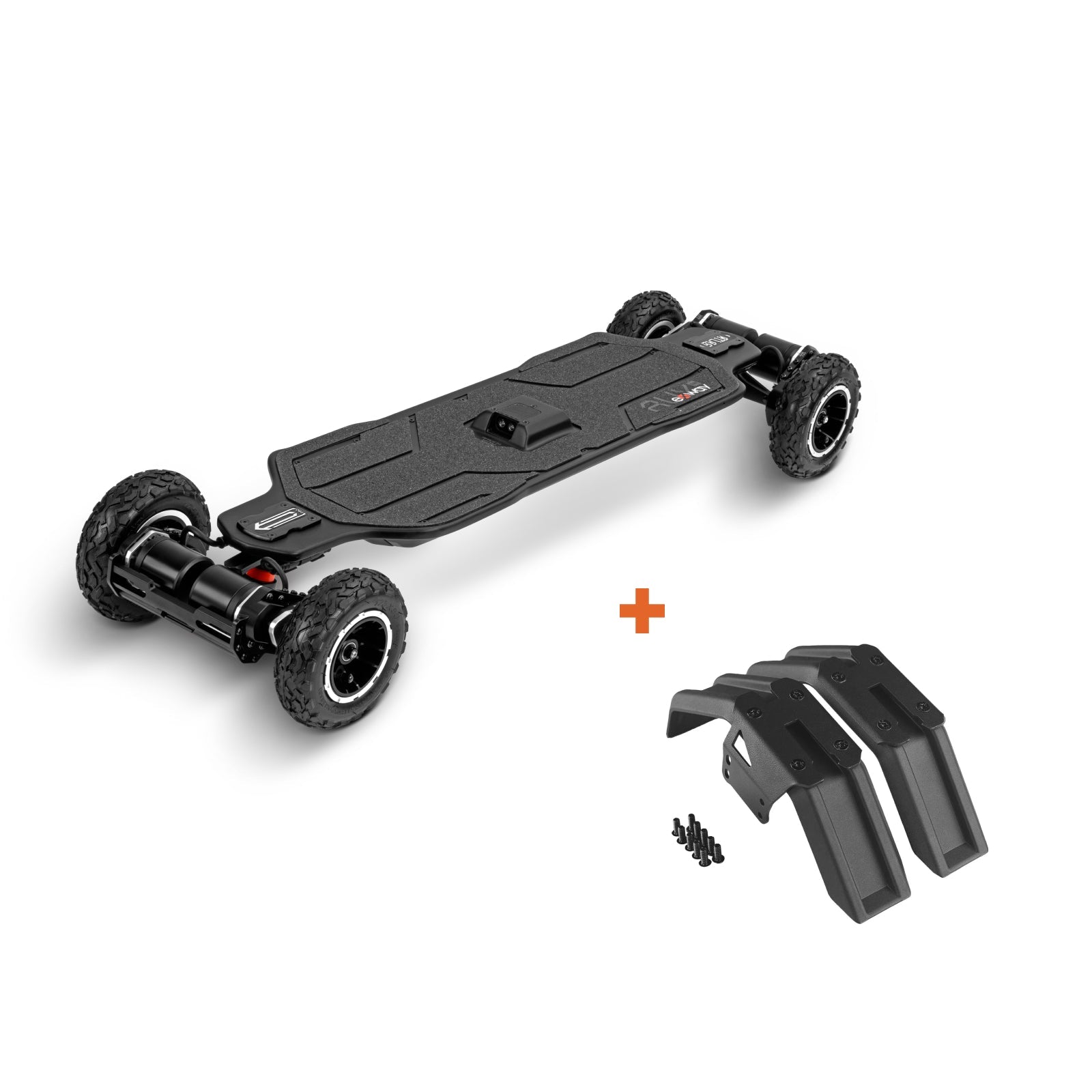

Tire Mudguards

Tire Mudguards

Designed for clip-on mudguards, the motor mounts include mounting points for easy mudguard installation.

Motor Crossbars

Motor Crossbars

The motor mounts on the Atlas Pro are reinforced with crossbars for protection and rigidity.

Freedom to Choose

Freedom to Choose

Quickly swap between 2WD/4WD with Exway's Modular Drivetrain

Compare

Atlas Carbon-2WD Atlas Carbon-4WD Atlas Pro-2WD Atlas Pro-4WD

Atals Pro-2WD (Gear)

Atals Pro-4WD (Gear)
Top Speed 45km/h 45km/h 55km/h 55km/h 53km/h 53km/h
Battery Capacity 518Wh 518Wh 701Wh 701Wh 701Wh 701Wh
Range
(160mm Pneumatic)
26km/16miles 24km/15miles 38km/24miles 34km/21miles 38km/24miles 34km/21miles
Range
(90mm Urethane)
54km/34miles 52km/32miles 73km/46miles 69km/43miles X X
Range
(160mm Pneumatic)(+AUXPack)
X X 95km/60miles 85km/52miles 95km/60miles 85km/52miles
Range
(90mm Pneumatic)(+AUXPack)
X X 183km/113miles 172km/107miles X X
Weight 11.5kg/25.4lbs 13.2kg/29.1lbs 14.9kg/32lbs 17.7kg/39lbs 16.7kg/36.8lbs 20.9kg/46.1lbs
Peak Output Power 2016W 3024W 3528W 7056W 3528W 7056W
Standard Charger Wattage 200W 200W 200W GaN 200W GaN 200W GaN 200W GaN
ESC ESC 2.0 ESC 2.0 ESC 3.0 ESC 3.0 ESC 3.0 ESC 3.0
Motor 4240 4240 6370 6370 6370 6370
Deck Carbon Fiber Unibody Carbon Fiber Unibody Carbon Fiber Unibody Carbon Fiber Unibody Carbon Fiber Unibody Carbon Fiber Unibody
Trucks

Trist 9.5"DKP

(Forged+CNC)

Trist 9.5"DKP

(Forged+CNC)

Trist 10.5"DKP

(Forged+CNC)

Trist 10.5"DKP

(Forged+CNC)

Trist 10.5"DKP

(Forged+CNC)

Trist 10.5"DKP

(Forged+CNC)

Remote R2
Bluetooth 4.0
R2
Bluetooth 4.0
R3
Bluetooth 5.0
R3
Bluetooth 5.0
R3
Bluetooth 5.0
R3
Bluetooth 5.0
App Exway Exway ExSkate ExSkate ExSkate ExSkate
Bushing Setup

92A High Rebound Barrel Bushings

Φ25x15mm Barrel

Cup Washers

92A High Rebound Barrel Bushings

Φ25x15mm Barrel

Cup Washers

95A Low Rebound Fat Bushings

Boardside Φ30x15mm Fat Cone

Roadside Φ30x15mm Fat BarrelFlat Washer

95A Low Rebound Fat Bushings

Boardside Φ30x15mm Fat Cone

Roadside Φ30x15mm Fat BarrelFlat Washer

95A Low Rebound Fat Bushings

Boardside Φ30x15mm Fat Cone

Roadside Φ30x15mm Fat BarrelFlat Washer

95A Low Rebound Fat Bushings

Boardside Φ30x15mm Fat Cone

Roadside Φ30x15mm Fat BarrelFlat Washer

Bushing Setup

Secondary Set

X X 20,4 20,5 20,6 20,7
AUXPack Compatible X X
Gear-drive Compatible X X
1000W Super-Charging X X
Quick-Swap CNC Wheel Hubs X X
Extra Wide Alloy Pulleys X X
Motor Guards X X
Mudguard-Ready Mounts X X
2-in-1 Conhguration Available as Add-on Available as Add-on Available as Add-on Available as Add-on X

X

Handle Available as Add-on Available as Add-on Standard Standard Available as Add-on Available as Add-on
Mudguards 1st Gen Compatible 1st Gen Compatible 2nd Gen Compatible 2nd Gen Compatible 2nd Gen Compatible 2nd Gen Compatible
Atlas Carbon-2WD Atlas Carbon-4WD Atlas Pro-2WD Atlas Pro-4WD

Atals Pro-2WD (Gear)

Atals Pro-4WD (Gear)
Board Atlas Carbon-2WD X 1 Atlas Carbon-4WD X 1 Atlas Pro-2WD X 1 Atlas Pro-4WD X 1 Atals Pro-2WD(Gear) X 1 Atals Pro-4WD (Gear) X 1
Remote
USB Cable
Charger
Accessory Bag
Manual

Mars Expedition Checklist(Souvenir)

X X X X X X
Custom NASA-Themed90mm Urethane Wheels X X X X X X

FAQ

What kind of battery cells does the Atlas Pro/Atlas Pro NASA use?

The new pack in the Atlas Pro consists of 4000mAh Lishen 21700 Li-ion cells in a 12S4P configuration.

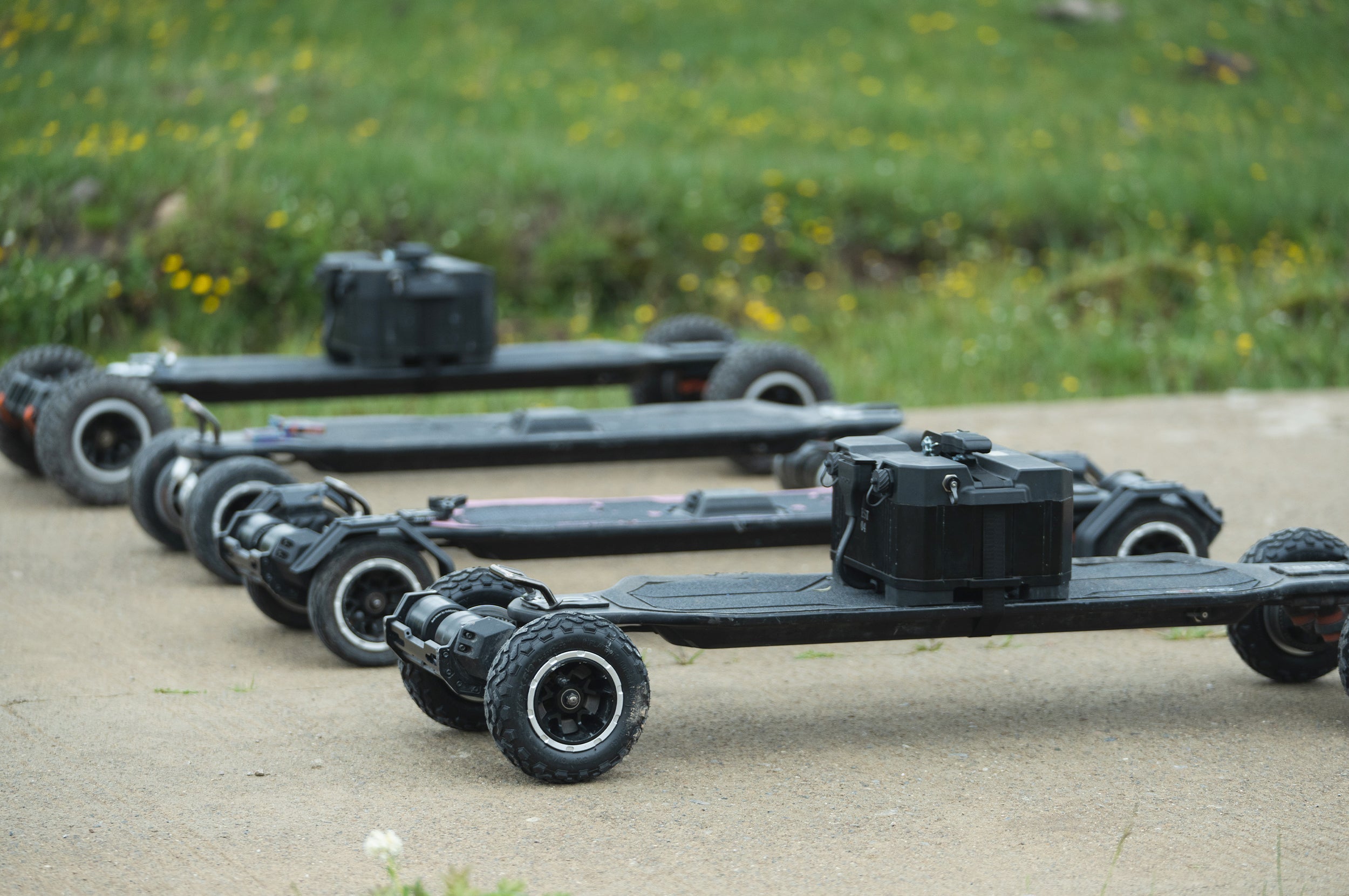

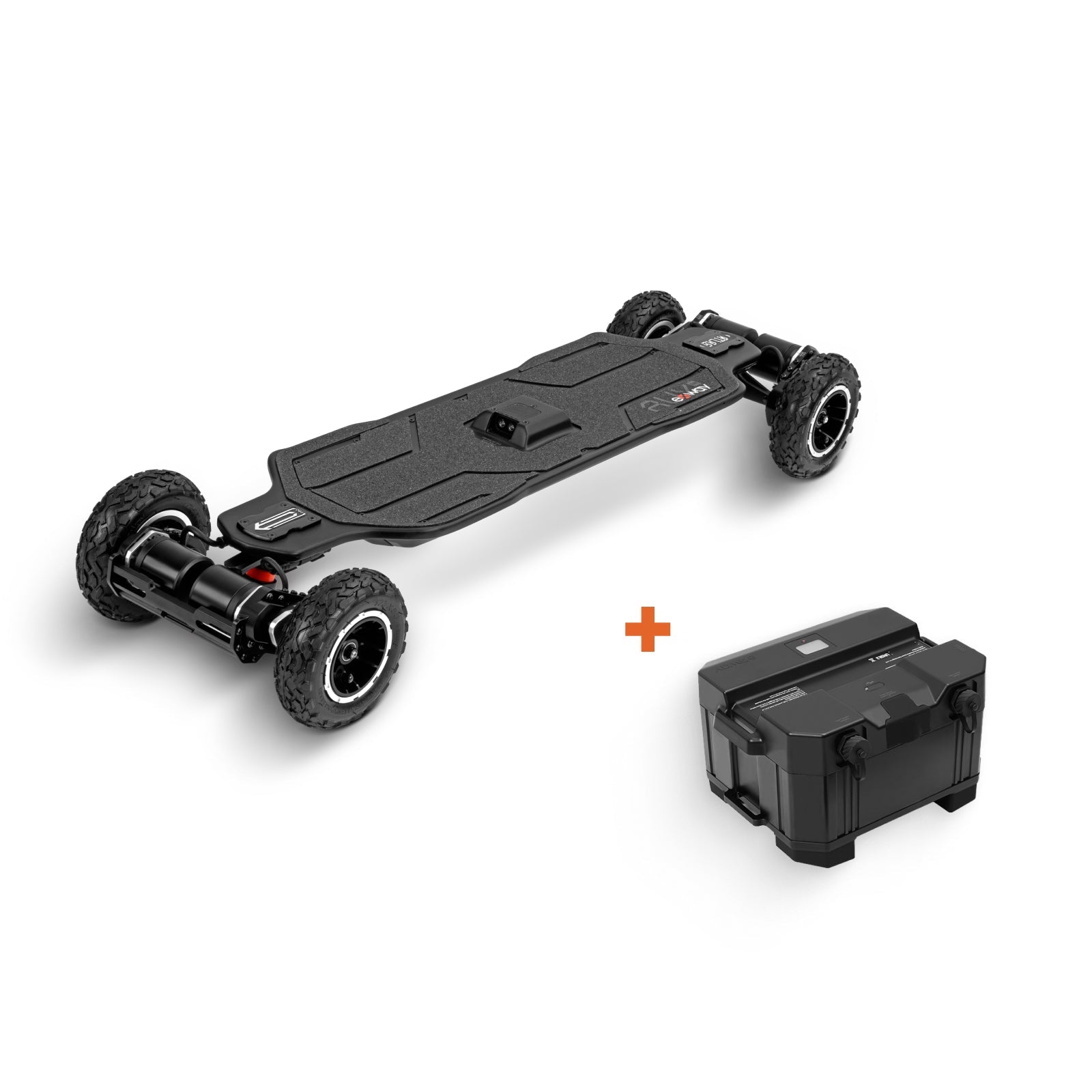

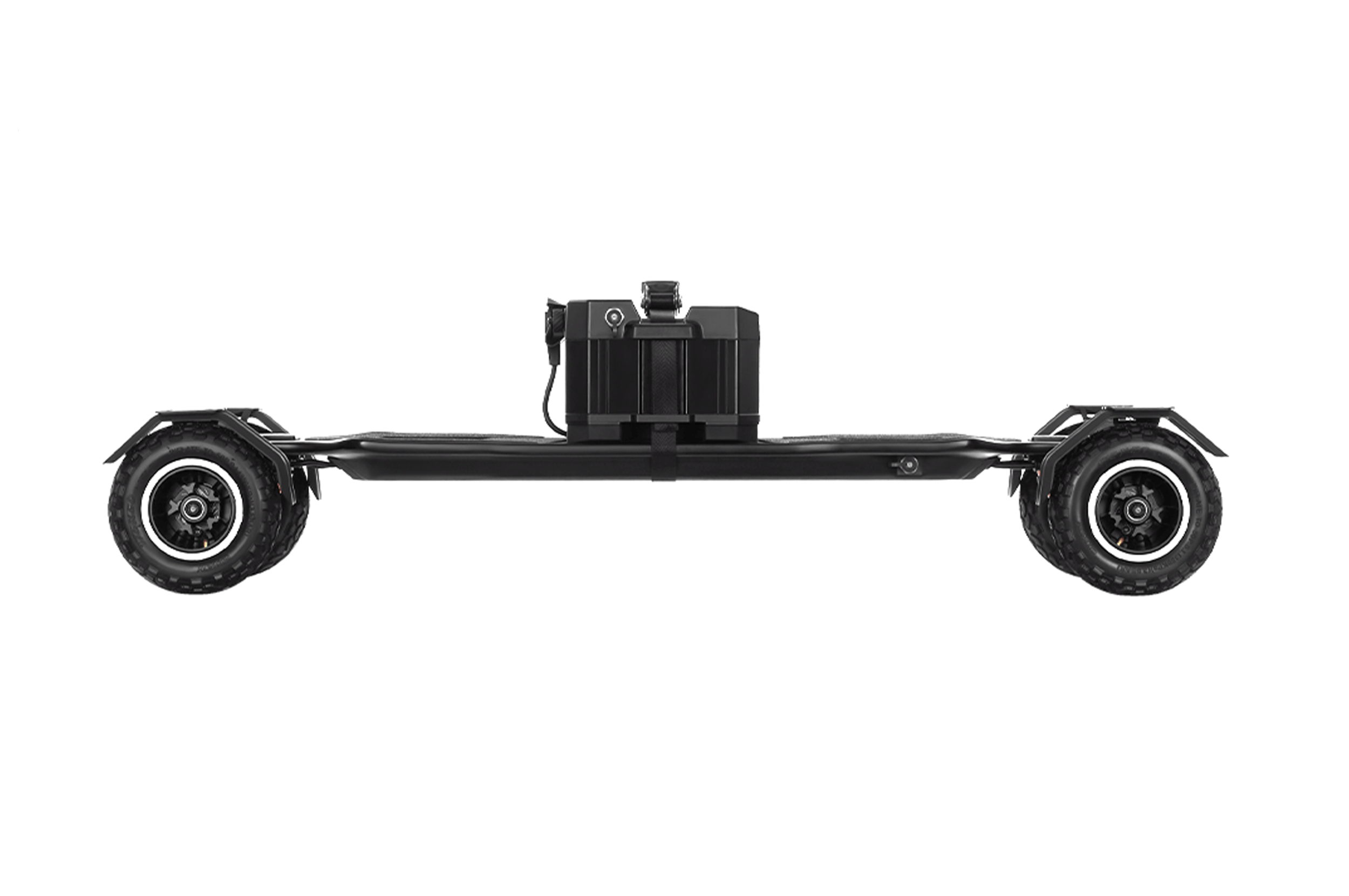

When will the AUXPack external battery pack launch? Can I use it on my Atlas Carbon? Will the AUXPack work with both 2WD and 4WD?

The AUXPack will be available for purchase at the start of November 2022.

As it was originally intended for use with the Atlas Pro (in both 2WD and 4WD), the AUXPack is currently not compatible with the Atlas Carbon. The Exway team is working to develop an Atlas Carbon compatible AUXPack, which will be released at a later date.



Can I change board settings on my Atlas Pro using the original Exway app?

The 3rd Gen ESC on the Atlas Pro has been redesigned and will not work with the original Exway app. Download the new Exway app releasing early August to view your board parameters and settings!



What's different about the new Exway app?

The new app "ExSkate" retains all the functions of the original app, with new features like ride route tracking and quicker firmware updates.



What's new with the Atlas Pro remote? Will it work with other Exway Boards?

The R3 remote that ships with the Atlas Pro feature redesigned internal circuitry and logic for improved performance. Currently the R3 remote only works with the Atlas Pro, not the X, Flex and Wave series.



What's different about the new OTA firmware upgrades?

Time taken for firmware upgrades has been drastically reduced, from 20 minutes to 4 minutes on average. For improved OTA firmware upgrade stability and speed, the new R3 remote and 3rd gen ESC uses Bluetooth 5.0 to communicate with the ExSkate app.



Can the AUXPack be used to charge other electronics?

There is a 10W USB-A port for older or low power devices, and a 100W USB-C port with support for QC3.0 and PD4.0 charging protocols for devices like smartphones, laptops, etc



Do both the Atlas Pro onboard battery and AUXPack support 20A charging? Will they need to be charged separately?

Both the Atlas Pro's onboard battery and AUXPack support 20A charging. With the AUXPack connected to the Atlas Pro, both the battery packs can be charged simultaneously by one charger with the smart BMS inside keeping the charging process safe and efficient. For the fastest charging times, disconnect the AUXPack and charge both the Atlas Pro and AUXPack separately using their own chargers.



Is there anything I should be aware of while connecting the AUXPack?

The two packs are connected through the smart BMS, not directly. This way the AUXPack can be connected while the board is at any battery level.



What is the difference between Atlas NASA and the standard Atlas Pro, and why are the prices different?

The performance of Atlas NASA is the same as the Atlas Pro, but the appearance is different, Atlas NASA comes standard with 2-in-1. And this is a custom model, officially authorized by NASA, so why the price is different.



Is there a 2in1 version of Atlas Pro?

Atlas Pro does not have a 2in1 version, customers need to buy a street wheel set separately.

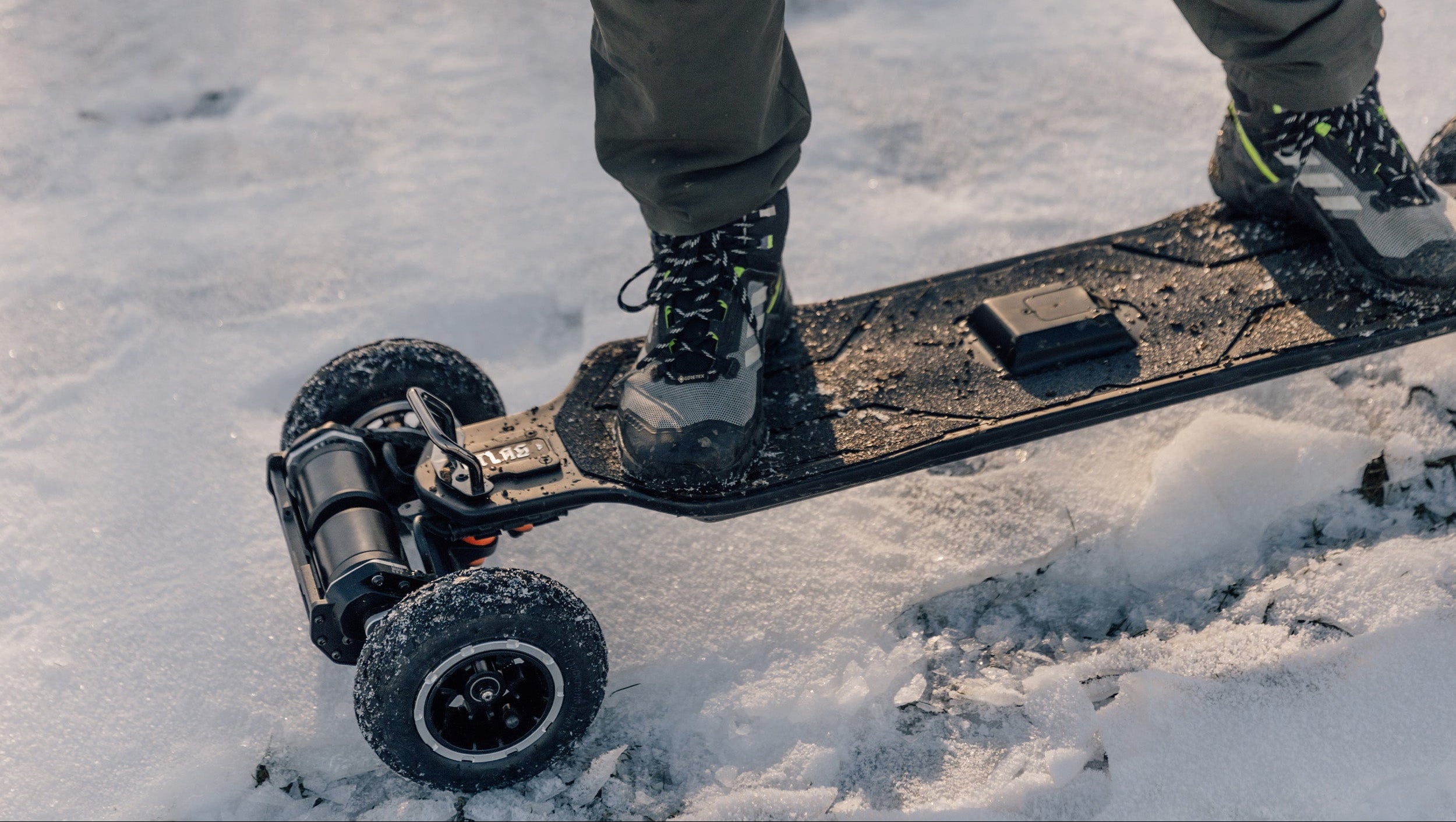

What are the benefits of gear drive over belt, hub or direct?

Our gear drive is more suitable for off-roading, with higher efficiency, stronger torque, a sealed housing that keeps out sand and gravel, no belt to break, and is overall more reliable. It is very, very low maintenance – just change the lube once every 1300 miles or 2000 km.

The water-resistance of the skateboard is IP55, which is resistant to splashes and dust under normal conditions, but if you ride in a puddle or where the water level is high, or even immerse your skateboard in water, the water is likely to enter the electrical parts and damage the part.
Please do not ride in the rain or any wet ground with water, this will cause a high risk of water damage and may cause the motor bearings to rust and make noise.

1. Alaska

2. American Samoa

3. Guam

4. Hawaii

5. the Marshall Islands

6. the Northern Mariana Islands

7. Palau

8. Puerto Rico

9. Rhode Island

10. U.S. Virgin Islands

11. Armed Forces Americas

12. Armed Forces Europe

13. Armed Forces Pacific

14. South America (except for Brazil and Uruguay)

15. Africa

Why can't I place an order?

For the following regions/countries, please visit these websites to purchase:

Canada: www.exwaycanada.ca

Australia: www.exway.com.au

The Czech republic、Slovakia: www.stablecam.com

Russia: www.exwayboard.ru

Korea: www.exwayboard.co.kr

Norway: www.elefun.no/rc/hobby.aspx

Switzerland: www.shop.e-longboard.ch

Taiwan: www.metasurf.com

For other regions or other questions, please contact info@exwayboard.com

Thank you for your understanding.

Atlas Pro Standard Edition

* United States: Fully stocked, shipped from California, shipping time is estimated to be 5-8 working days.

* EU: Fully stocked, shipped from Germany. The shipping time is estimated to be 5-8 working days.

* UK: Fully stocked, shipped from Merseyside. The shipping time is estimated to be 5-8 working days.

*Asia: Shipped by air from China, the estimated transit time is 10-14 working days. (shipping fee will be required)

Orders from Japan: Shipped from local warehouse in Japan.

Atlas Pro Gear Drivetrain Edition

* United States:

Atlas Pro Gear Drivetrain 2WD: Limited stock, shipped from California. The shipping time is estimated to be 5-8 working days.

Atlas Pro Gear Drivetrain 4WD: sold out

* EU:

Atlas Pro Gear Drivetrain 2WD: Fully stocked, shipped from Germany. The shipping time is estimated to be 5-8 working days.

Atlas Pro Gear Drivetrain 4WD: Sold out.

* UK:

Atlas Pro Gear Drivetrain 2WD: Limited stock,shipped from Germany. The shipping time is estimated to be 5-8 working days.

Atlas Pro Gear Drivetrain 4WD: Sold out

*Asia: Shipped by air from China, the estimated transit time is 10-14 working days, and shipping fee will be charged.

* Please allow extra time for transit during COVID-19 and Holiday Periods.

* Provided pictures, models, functions, performances, and other data on the page is for reference. For specific information, please refer to the actual product.
* Due to the properties of lithium-ion batteries, the maximum capacity of the battery will decrease with age and usage.
* Battery range estimates depend on conditions such as rider weight, speed, temperature, wind, tire pressure, terrain, incline, etc. Mileage may vary.
