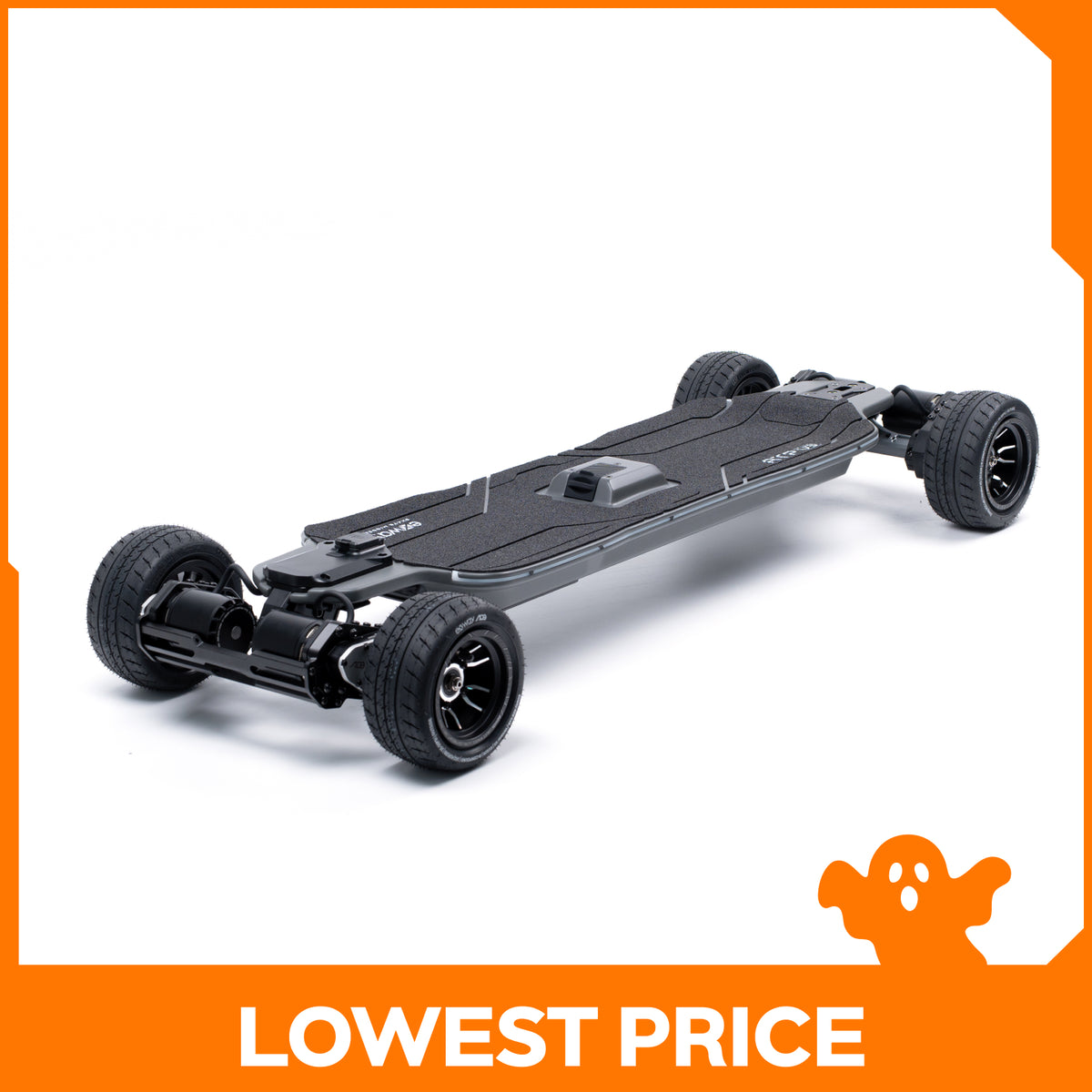

Exway Atlas Pro
Better performance is easier to drive!
6Months Warranty
Free Shipping
15-Day Returns
General Info
Model:Atlas Pro Belt/Gear
Max Speed:55 KPH
Levels Assist:1.2.3.4.Turbo levels Adjustable Acceleration strength
Braking:FOC Regenerative Braking & Adjustable Braking strength
Range:Up to 40 Kilometer(AUX Pack can be installed to reach 85KM range)
Total Weight Limit:300 lbs
Ideal Use:All-Terrain
Folding:No
Rider:Suitable for ages 15 and up
Weight:17.7 KG
Safety Certified:Comply with UL2272.CE standards. Red Dot Design Award
SIZE: 122*35*16.2cm / 48*13.7*6.3inch (Max Size,L*W*H)
DECK: Carbon Fiber
TRUCKS: Trist 10.5" DKP (Forging + CNC Precision Machined) (Replaceable RKP)
WHEELS: 160*50mm High quality rubber wheels (quick release) (any skateboard wheels from 85-200mm)
Hubs:All aluminum CNC precision cutting(Replaceable)
MOTORS: 7056W power rated 6370*4 Custom Brushless Sensored Motors
DRIVE:Belt/Gear （BELT RATIO:3.7/GEAR RATIO:4.7）
ESC: Custom 12S 50.4V ESC3.0 - 2.4G Wireless & Bluetooth
BATTERY:691Wh,12S4P 50.4V 120A Smart BMS
BATTERY PACK: AUX Pack can be installed
CHARGER: 3.5A Charger (1050W Quick Charger)
CHARGING TIME: 691WH 4H (1050W 40min)
REMOTE: Rexus Color screen Remote/R3 Remote
APP SUPPORTED:Yes
Mud Guards:Yes
Miscellaneous：Check
Technical Overview
Atlas Pro is factory-set at 20KM/H. When the rider reaches 10KM, 1.2.3.4.Turbo gears are automatically unlocked. It has a tank U-turn function without bending over to change direction. The maximum speed in Turbo mode can reach 55KM/H. If you want to ride in an area where the throttle is prohibited, Atlas Pro can also run without turning on the power. Exwayboard meets the IP55 waterproof standard. IP55 means that your board can withstand water from the road. Splashes or raindrops on wet roads will not harm it. Your electric board is not suitable for long-term exposure to rain, immersion in water, or pressurized spray. Do not use a pressure washer or sprayer to clean the electric board.
*Maximum driving distance is determined at 25km/H on flat terrain, with a rider weight of 75KG (160 pounds).
All electric skateboards are produced in batches and then shipped to our regional warehouses.
After arriving at the warehouse, US orders will be received within 3-7 business days, and European orders will be received within 3-7 business days.
If our regional warehouse does not have stock, it will be considered a bulk reservation. Large quantities of electric skateboards are shipped to US and European warehouses on the way.
We will confirm the shipping address and delivery date with the customer within 24 hours after receiving the order.
1 * Atlas Pro
1 * Remote Bag ( include remote , charging cord, etc.)
1 * Tool Bag(Includes all tools to disassemble the boards)
1 * User Manual
1 * 3.5A Gan Charger
1 * Exquisite bracelet
1 * Skate Handle
Rider Reviews
Aluminum Quick-Swap Wheel Hubs
Replace your inner tubes without needing to disassemble the wheel hubs.
Tire Mudguards
Designed for clip-on mudguards, the motor mounts include mounting points for easy mudguard installation.
Motor Crossbars
The motor mounts on the Atlas Pro are reinforced with crossbars for protection and rigidity.
Freedom to Choose
Quickly swap between 2WD/4WD with Exway's Modular Drivetrain
FAQ
- Provided pictures, models, functions, performances, and other data on the page is for reference. For specific information, please refer to the actual product.
- Due to the properties of lithium-ion batteries, the maximum capacity of the battery will decrease with age and usage.
- Battery range estimates depend on conditions such as rider weight, speed, temperature, wind, tire pressure, terrain, incline, etc. Mileage may vary.
About Atlas Pro
What kind of battery cells does the Atlas Pro/Atlas Pro NASA use?
The new pack in the Atlas Pro consists of 4000mAh Lishen 21700 Li-ion cells in a 12S4P configuration.
When will the AUXPack external battery pack launch? Can I use it on my Atlas Carbon? Will the AUXPack work with both 2WD and 4WD?
The AUXPack will be available for purchase at the start of November 2022.
As it was originally intended for use with the Atlas Pro (in both 2WD and 4WD), the AUXPack is currently not compatible with the Atlas Carbon. The Exway team is working to develop an Atlas Carbon compatible AUXPack, which will be released at a later date.
Can I change board settings on my Atlas Pro using the original Exway app?
The 3rd Gen ESC on the Atlas Pro has been redesigned and will not work with the original Exway app. Download the new Exway app releasing early August to view your board parameters and settings!
What's different about the new Exway app?
The new app "ExSkate" retains all the functions of the original app, with new features like ride route tracking and quicker firmware updates.
What's new with the Atlas Pro remote? Will it work with other Exway Boards?
The R3 remote that ships with the Atlas Pro feature redesigned internal circuitry and logic for improved performance. Currently the R3 remote only works with the Atlas Pro, not the X, Flex and Wave series.
What's different about the new OTA firmware upgrades?
Time taken for firmware upgrades has been drastically reduced, from 20 minutes to 4 minutes on average. For improved OTA firmware upgrade stability and speed, the new R3 remote and 3rd gen ESC uses Bluetooth 5.0 to communicate with the ExSkate app.
Can the AUXPack be used to charge other electronics?
There is a 10W USB-A port for older or low power devices, and a 100W USB-C port with support for QC3.0 and PD4.0 charging protocols for devices like smartphones, laptops, etc
Do both the Atlas Pro onboard battery and AUXPack support 20A charging? Will they need to be charged separately?
Both the Atlas Pro's onboard battery and AUXPack support 20A charging. With the AUXPack connected to the Atlas Pro, both the battery packs can be charged simultaneously by one charger with the smart BMS inside keeping the charging process safe and efficient. For the fastest charging times, disconnect the AUXPack and charge both the Atlas Pro and AUXPack separately using their own chargers.
Is there anything I should be aware of while connecting the AUXPack?
The two packs are connected through the smart BMS, not directly. This way the AUXPack can be connected while the board is at any battery level.
What is the difference between Atlas NASA and the standard Atlas Pro, and why are the prices different?
The performance of Atlas NASA is the same as the Atlas Pro, but the appearance is different, Atlas NASA comes standard with 2-in-1. And this is a custom model, officially authorized by NASA, so why the price is different.
Is there a 2in1 version of Atlas Pro?
Atlas Pro does not have a 2in1 version, customers need to buy a street wheel set separately.
What are the benefits of gear drive over belt, hub or direct?
Our gear drive is more suitable for off-roading, with higher efficiency, stronger torque, a sealed housing that keeps out sand and gravel, no belt to break, and is overall more reliable. It is very, very low maintenance – just change the lube once every 1300 miles or 2000 km.
Are the boards waterproof?
The water-resistance of the skateboard is IP55, which is resistant to splashes and dust under normal conditions, but if you ride in a puddle or where the water level is high, or even immerse your skateboard in water, the water is likely to enter the electrical parts and damage the part.
Please do not ride in the rain or any wet ground with water, this will cause a high risk of water damage and may cause the motor bearings to rust and make noise.
